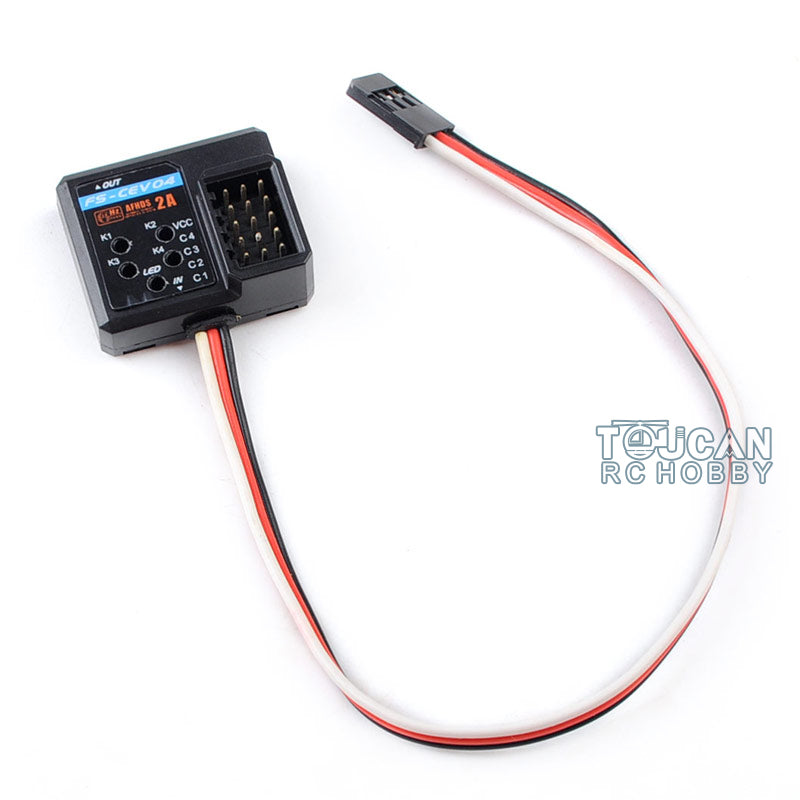

Flysky CEV04 4CH Receiver for PL18 Remote Control - Compatible with RC Trucks, Airplanes, Excavators, Boats & Cars - DIY Hobby Model Parts for Racing, Crawling & Scale Modeling

Product Description

Specifications:
Channels: 4
Model type: car/boat/helicopter/ airplane/ glider
Weight: 8.1g
Power: 4.0-6.5V/DC
Size: 30*25.6*13mm
Color: Black
i-BUS Port: yes
Compatible Receiver: iA4B(directly), iA6B(directly), iA10(need conversion cable)

Operation instruction:
1. FS-CEV04 i-BUS The ???IN??????port of FS-CEV04 receiver corresponds to ???OUT??????port of receiver.
2. FS-CEV04 i-BUS The ???OUT??????port of FS-CEV04 receiver is used to connect post level FS-CEV04 receiver.
3. Insert the bus receiver to receiver, and then switch on the matched transmitter and receiver. The LED will be on.
4. Select main menu of receiver setup to enter the interface of servo setup.
5. Select channel which need to be expanded, meanwhile LED of bus receiver is off.
6. Push relevant channel button by plastic needle of matching line. The setup is successful if LED flashes automatically.
7. Insert servo to check.
8. Set up 4 channels of bus receiver as above steps.
9. Just connect a new bus receiver with ???OUT??????port of first stage bus receiver if more channel needed. Set up the new one as above steps.
