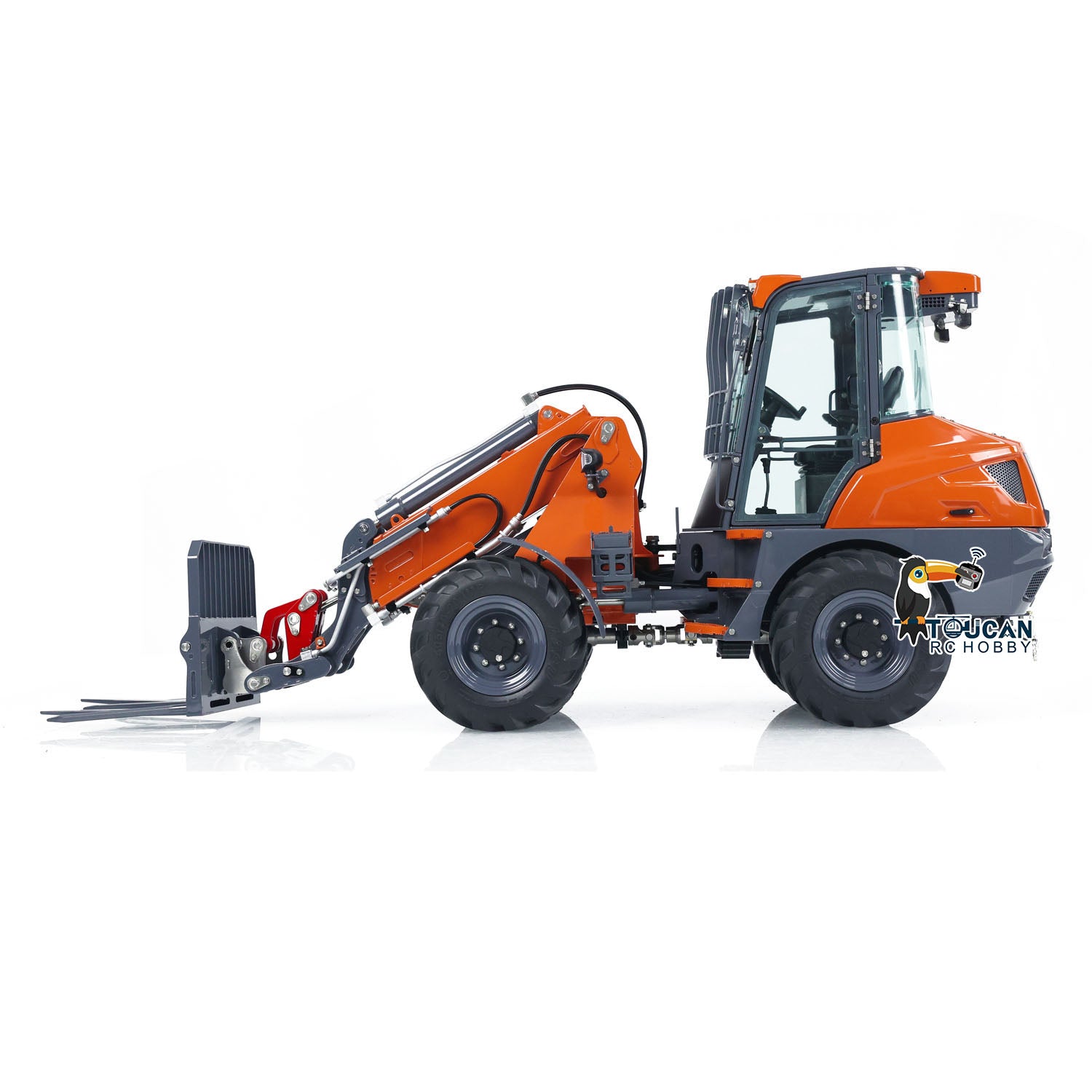

1/14 Scale LESU AT1050 4X4 Hydraulic RC Forklift Truck with Telescopic Arm - Painted & Assembled Model with ST8 Radio System - Perfect for Construction Site Simulation & Indoor RC Vehicle Play

Product Description

Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/14
Product Weight (Chassis) /KG: 4
Drive Type: Four-wheel drive
Product Dimensions /mm: 478*165*221 (L*W*H)
ID: LS-RD-A0016-PNP-OGGY

We have different color to choose, the package option is selected by yourself.

The Package Includes:
1/14 RC Telescopic Arm Fork Loader Model
ESC
Motor
Servo
Hydraulic System
Light System
Sound System

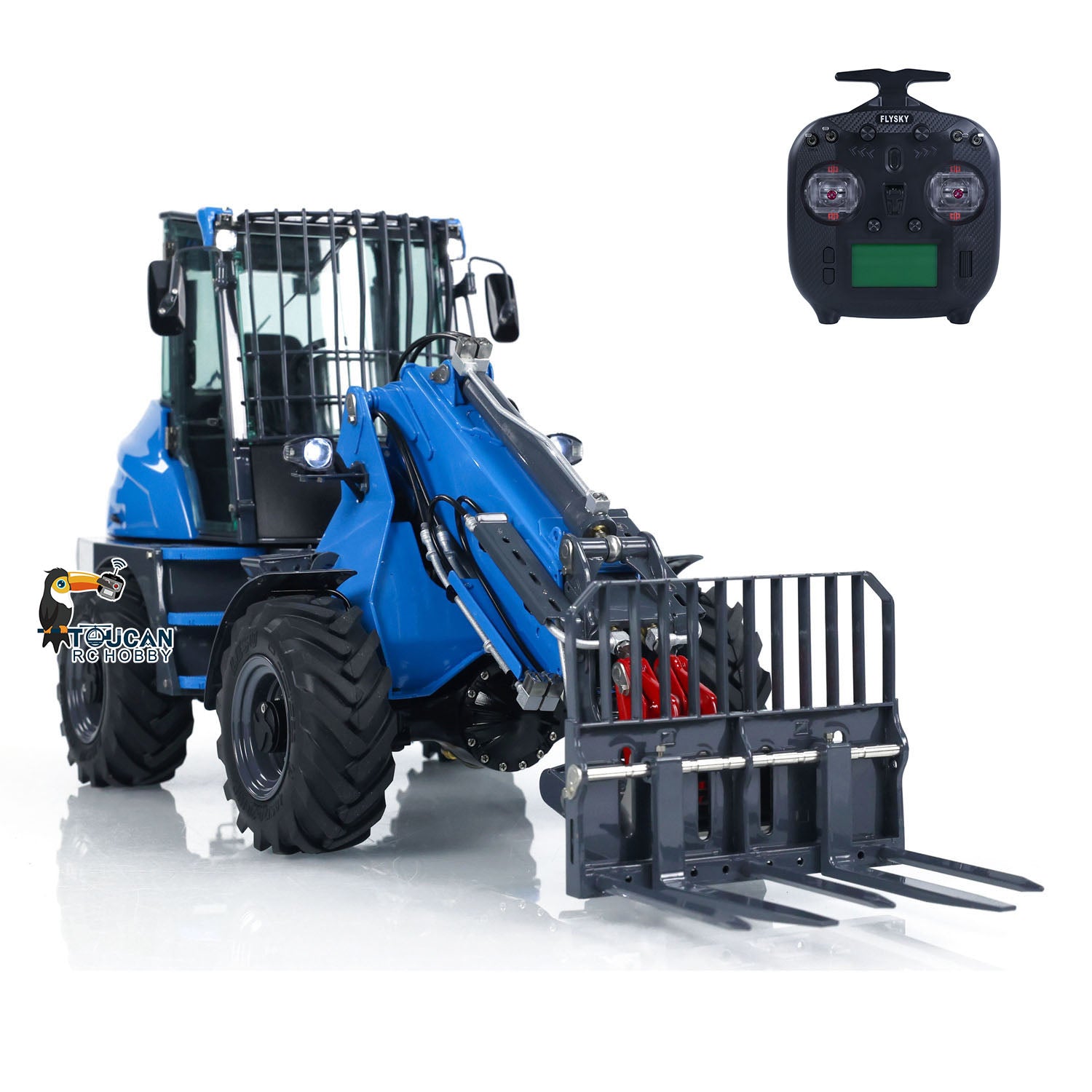

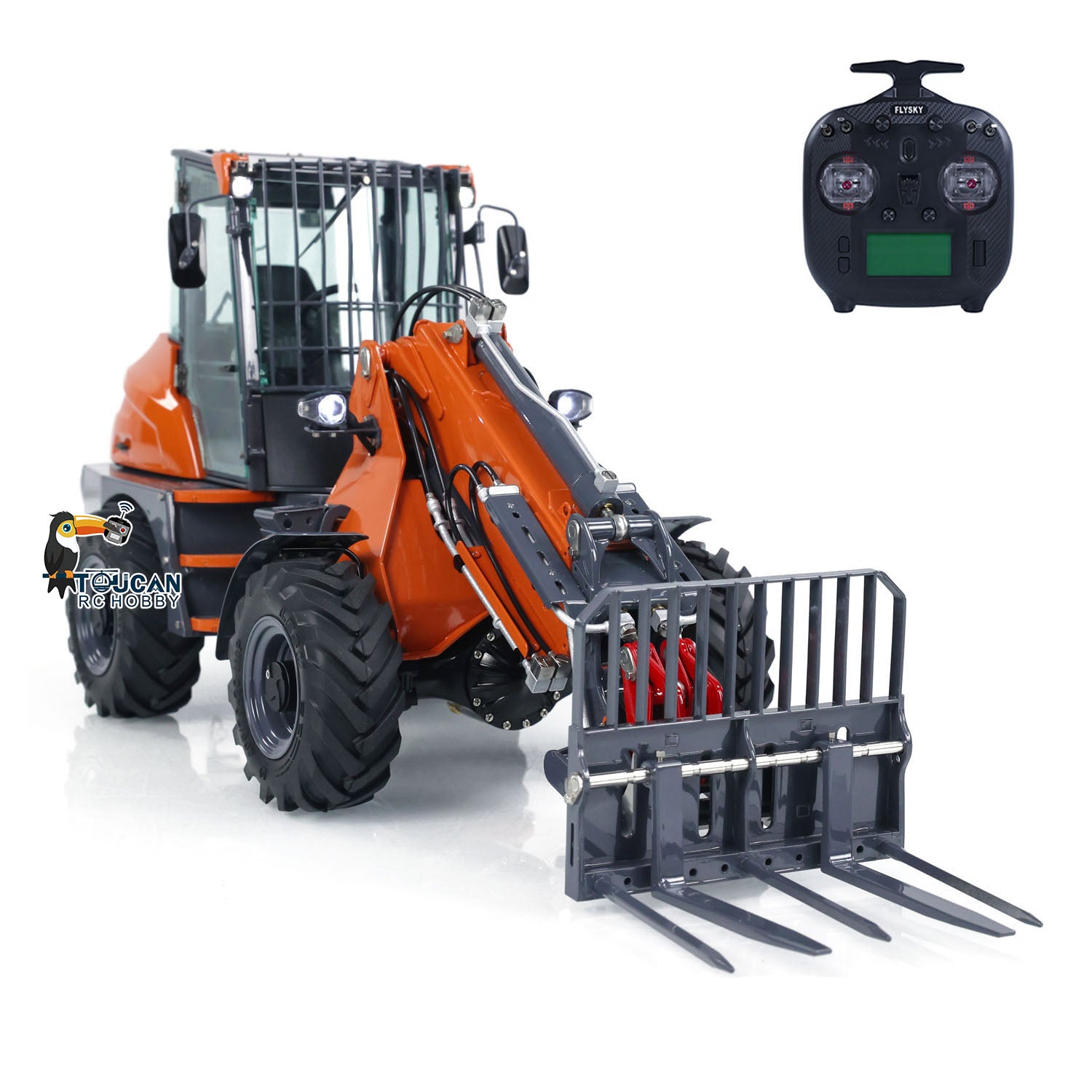

FlySky ST8 Remote Controller and Receiver

The Package Does Not Include:
Battery
Charger
Hydraulic Oil

Features:

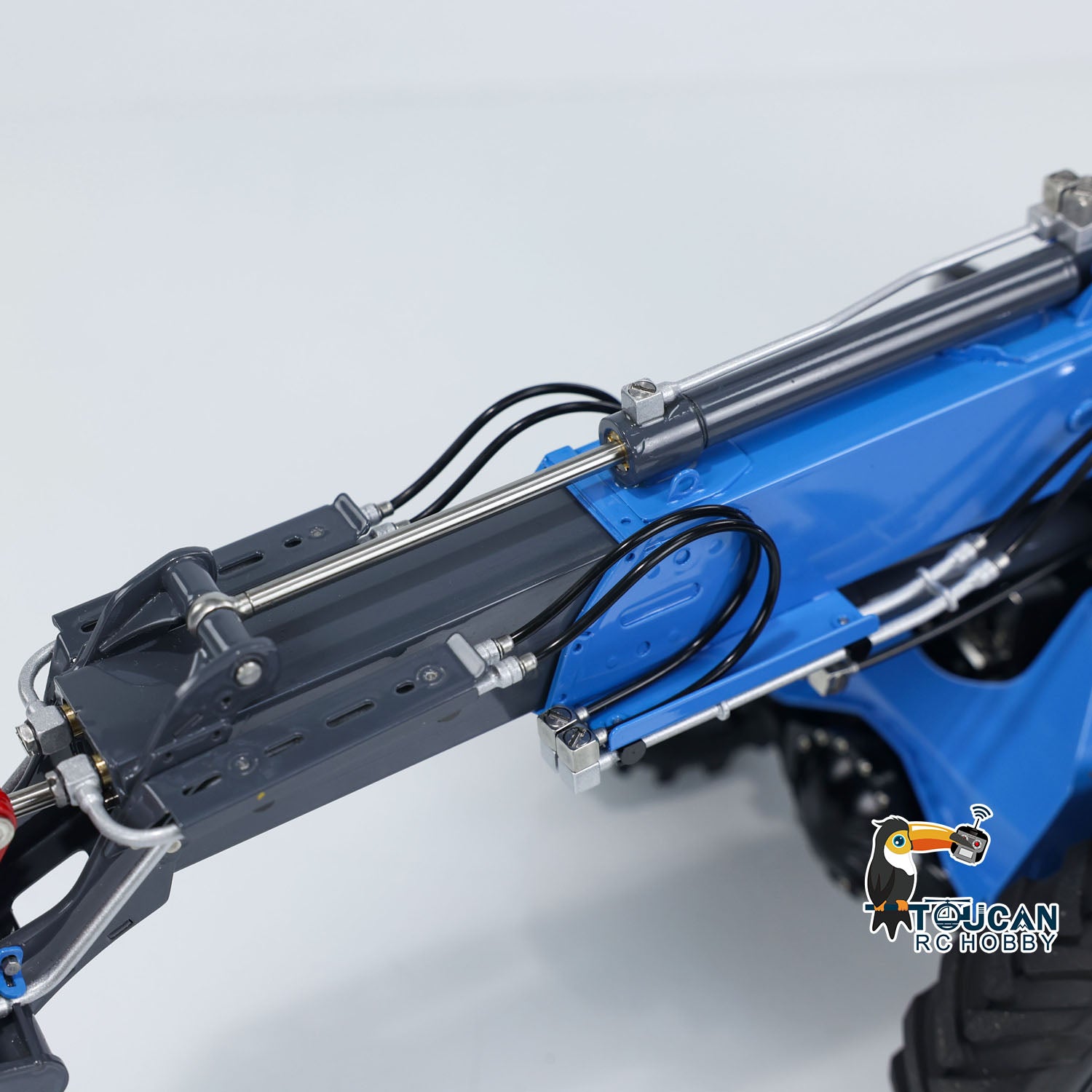

1. Precision Hydraulic System: More coordinated, smooth, and linear movements.
2. Hydraulic Steering: Precise steering, more stable operation.

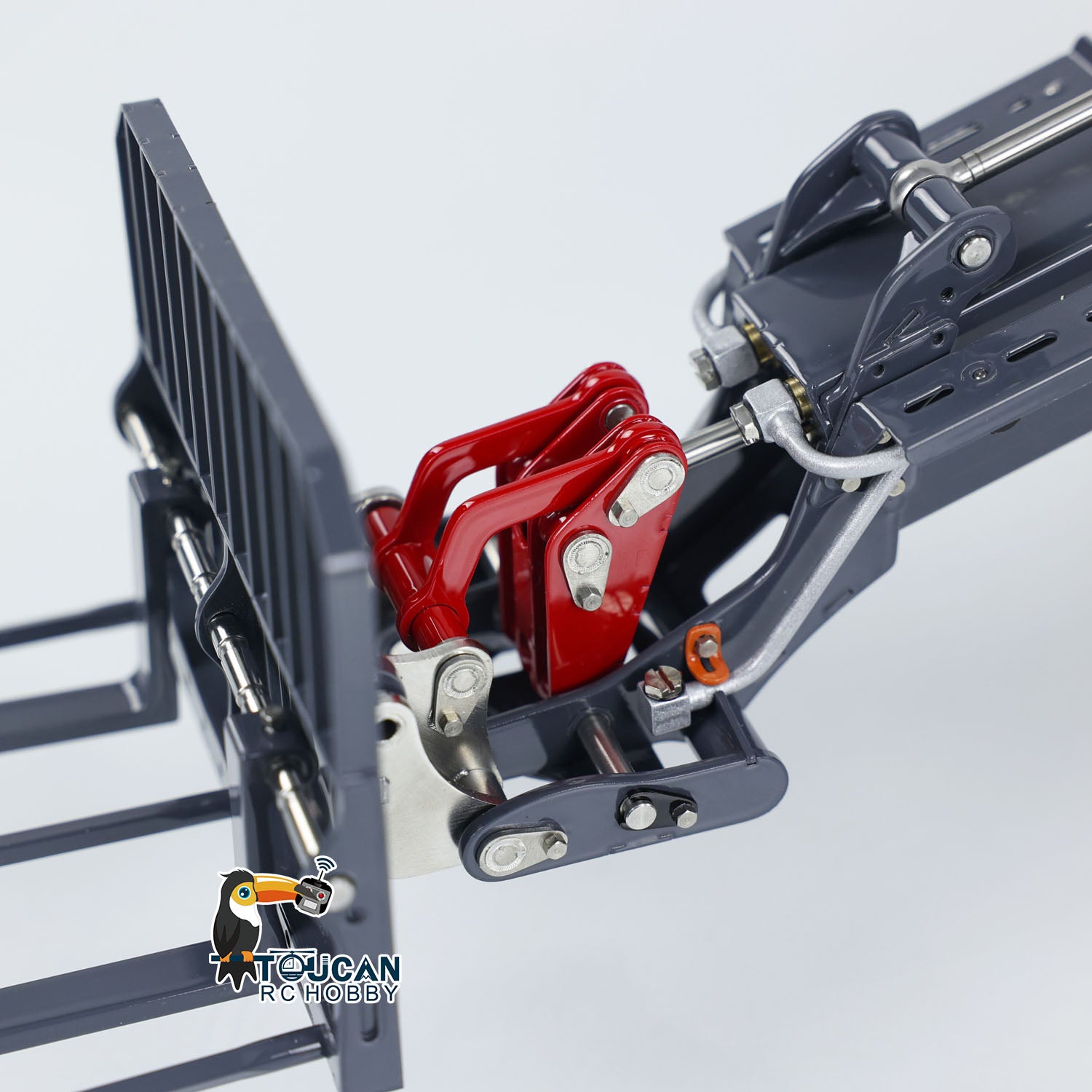

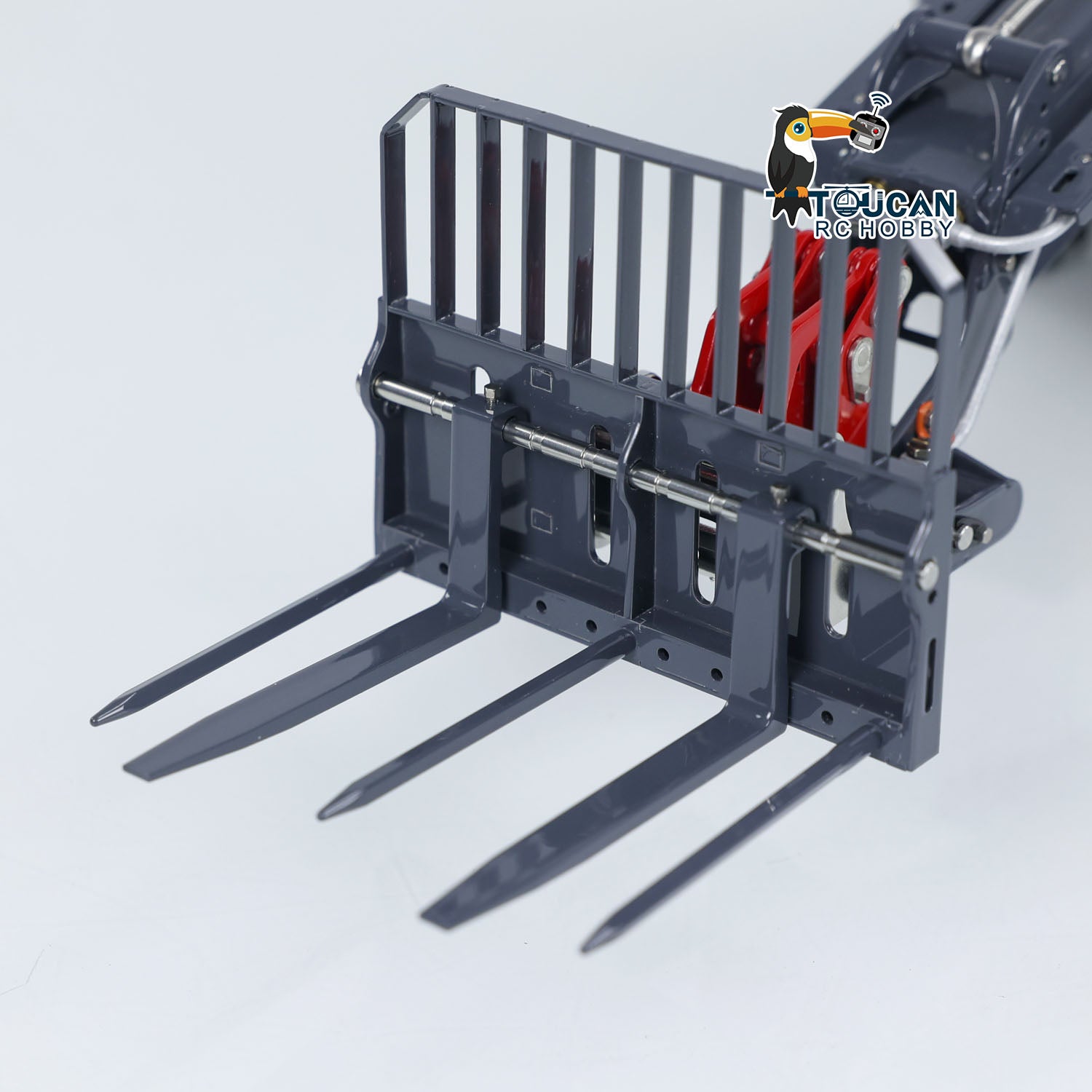

3. Hydraulic Fork Bucket: More flexible and convenient operation.

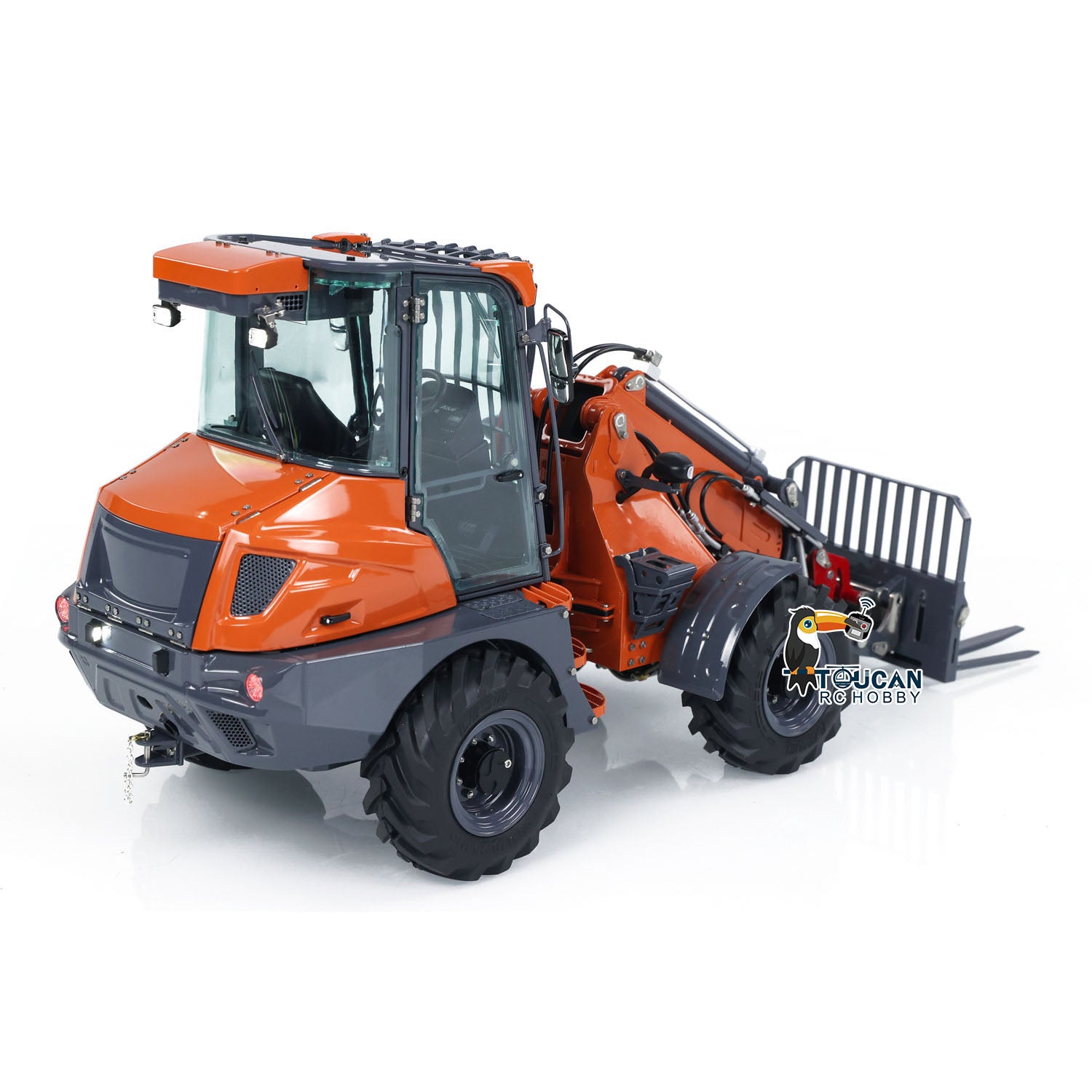

4. Equipped with a flip-open cab; the entire machine has 5 doors that can be opened.

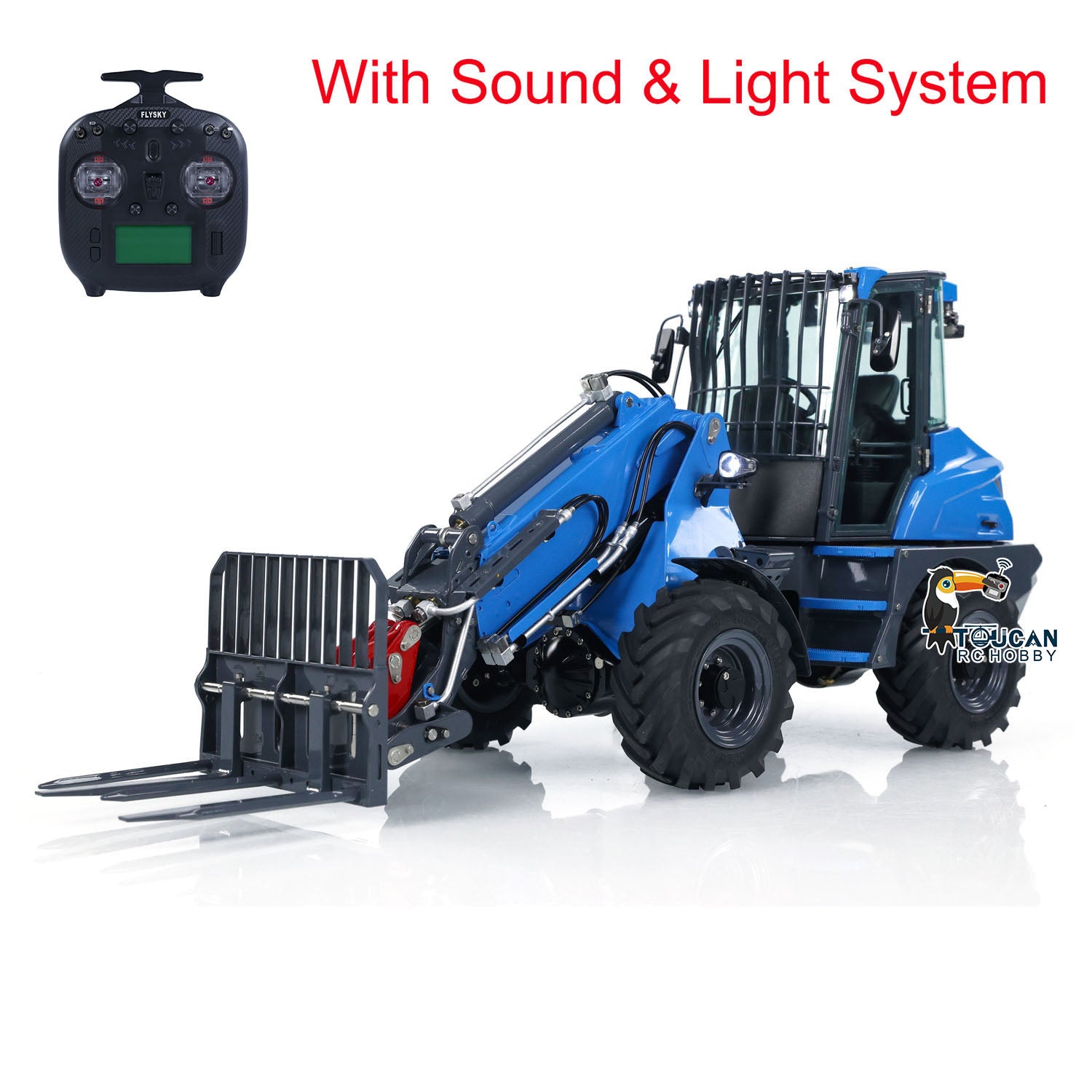

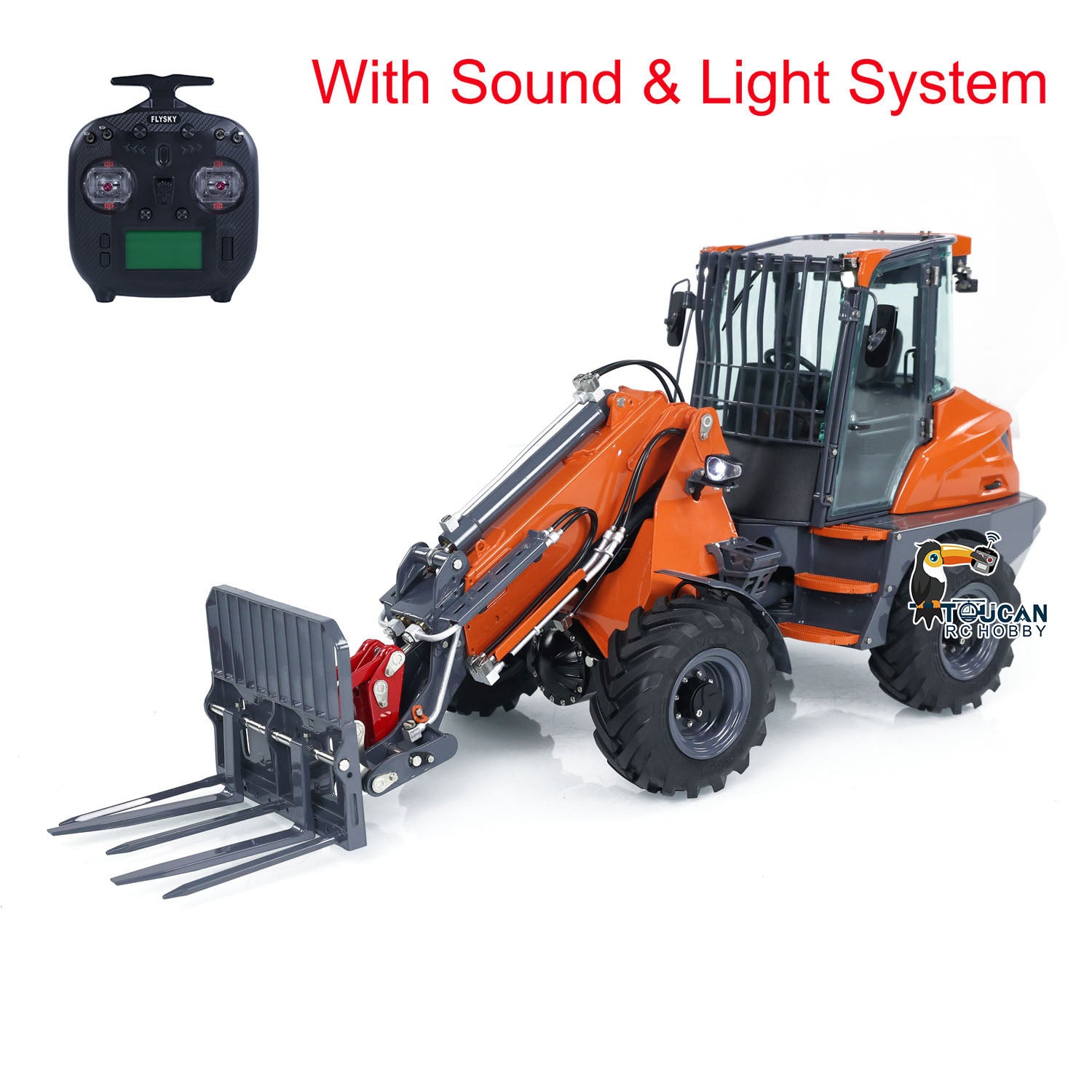

5. Full vehicle lighting, simulated sound effects, equipped with a light and sound system for easier control.
6. Equipped with a simulated stainless steel cab protection net; 90% of the machine is made of metal.

Technical Parameters:
Total Length of Loader /mm: 478
Bottom Height from Ground of Bucket /mm: 361.8
Total Length from Bucket Chain Pin /m: 374.8
Maximum Hinge Pin Height from Ground /mm: 373.4
Length from Front Wheel to Fork Bucket Mounting Hole /mm: 118.4
Maximum Operating Height /mm: 461.2
Wheelbase /mm: 161
Track Width /mm: 135.1
Length from Rear Wheel to Tail of Body /m: 95.4
Width of Tire Outside /mm: 164.7
Cabin Height from Ground /mm: 221.4
Driveshaft Height from Ground /mm: 33
Workstation Height from Ground /mm: 129.6
Distance from Fork Teeth to Dump Linkage /mm: 52.5
Maximum Unloading Height /mm: 287
Number of Directional Control Valves: 2+3
Maximum Pressure of Hydraulic Workstation /mpa: 3
Number of Hydraulic Pumps: 1
Rated Pressure of Hydraulic Workstation /mpa: 2
Number of Hydraulic Cylinders: 5
Oil Pipe Specifications (Diameter x Inner Diameter) /mm: 2.5x1.5, 2x1
Shell Material: Aluminum alloy + stainless steel

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
